Van De Graaff Generator Manufacturer,Supplier and Exporter in Kenya

Van De Graaff Generator

Product Code : LSK-PL-10330

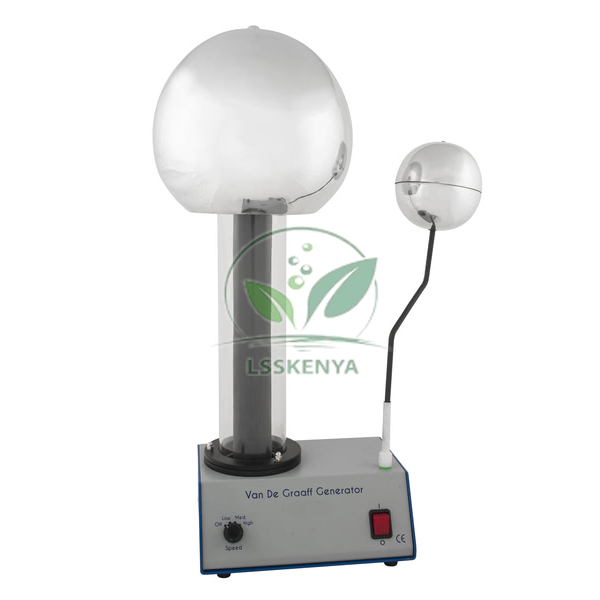

The Generator consists of a conducting sphere supported by a plexiglass pillar and a rubber belt driven by an electric motor concealed in the metal base. Static electrical charge is produced by friction between this band and two rollers, one of polythene, the other of plexiglass. The charge is removed from the belt by a metal gauze and stored in the dome. The electric motor is driven from the mains supply, using a three-wire cable. The base is fitted with a 4mm diameter socket which can be used either for supporting a conducting sphere (fitted with a cranked rod support) or for a wire connection to a separate conducting sphere (fitted on a plexiglass rod). A dust cover is provided to keep the Van de Graaff free from dust when not in use. With Accessory kit.

Technical Specifications
Fuse Rating: 315 mA / 250V
Dome Capacitance: 15pF (approx)
Maximum (intermittent) current: 6µA (approx)
Maximum Spark Length: 50mm (approx)
Diameter of Generator Dome: 220mm
Total Height: 500mm.
Diameters of Conducting Spheres: 100mm
Power Output: 200,000 - 400,000 volts (depending on humidity levels)
Base (max) Dimensions: 218 x 182 x 93mm
Operating Voltage: 220 to 240V AC
