Miniature LDR Manufacturer,Supplier and Exporter in Kenya

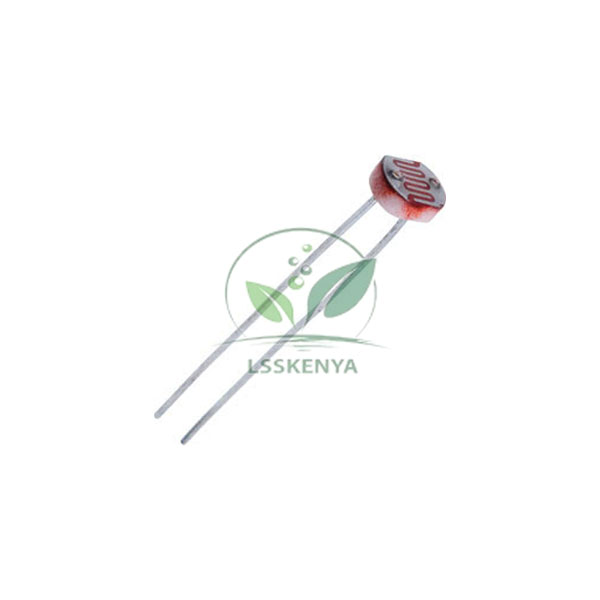

Miniature LDR

Product Code : LSK-PL-10304

This miniature Light Dependent Resistor is housed in an epoxy package. Consisting of a resistor which is made of semiconductor material whose conductance changes with variations in luminance. Resistance reduces as the light falling on the device increases.

Technical Specifications:
Max. voltage: 150V peak AC or DC
Power dissipation: 100mW
Diameter: 5mm
Dark resistance: 1MΩ
Peak spectral response: 540nm
Lead pitch: 3mm
Operating temperature: –30°C to +70°C
Resistance @ 10 Lux: 10-20kΩ
Resistance @ 100 Lux: 2-4kΩ
