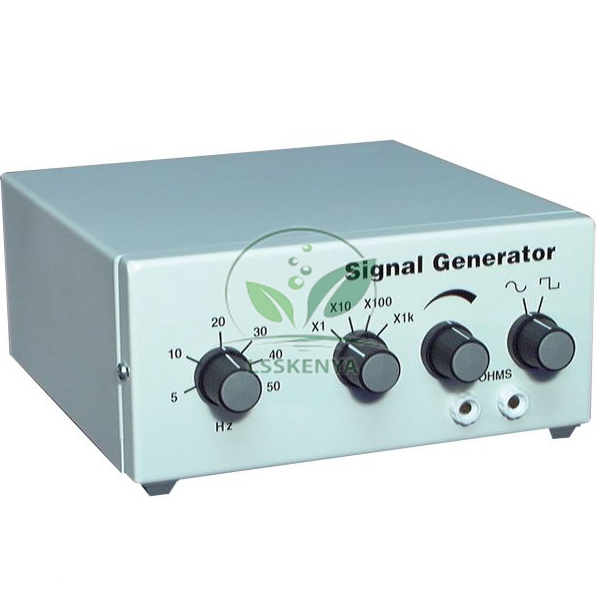

Bench Signal Generator

Product Code : LSK-PL-10279

The output amplitude is continuously variable from zero to maximum 8V peak to peak with maximum output power 1W into 8 ohms.
Sine and square wave generator. Frequency range 5Hz to 50kHz in four switched ranges plus a fine control.
Enclosed in a robust metal case with a durable powder coated finish.
Accuracy typically ±10%.
The output is taken from two 4mm sockets mounted on the front panel.
An illuminated on/off switch is mounted on the rear panel adjacent to a fused mains inlet.
Dimensions (LxWxH): 179 x 190 x 85mm.
