Metacentric Height Apparatus

Product Code : LSK-TWL-10818

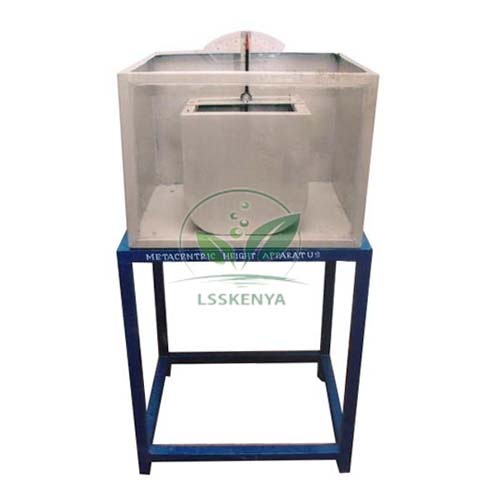

Metacentric Height Apparatus
Description:-
A small ship model having provision to put the load on the deck or at the base and an arrangement to measure the inclination due to loading.

Specification:-
This apparatus is used to determine the metacentric height of a ship model under load and unload condition, (flat-bottomed vessel).
A flat-bottomed semi-circular ship model of size 380 x 250 x 170mm.
A tank of size 60 x 60 x 30cm fitted with piezometer tube to measure the level of water.
This apparatus consists of:-
A crossbar arrangement with the provision of angling movable weights at the known distance from the vertical axis through C.G.
The transparent sheet is provided on the front of the tank.
A pointer to measure the angle of heel up to +/-15°.
Additional five hanging weights (50 gm. each) are provided.
The tanks are well epoxy painted inside to prevent rust hence increase the life of the tank.
