Large Capacity Pulse Vacuum Autoclave Manufacturer,Supplier and Exporter in Kenya

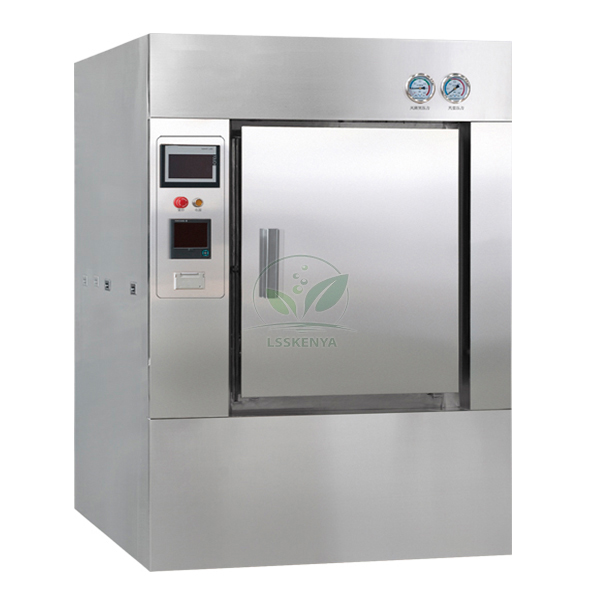

Large Capacity Pulse Vacuum Autoclave

Product Code : LSK-A-11385

Description
Large Capacity Pulse Vacuum Autoclave is Widely used for textiles, metal utensils, filters, glassware, animal cage and feed, medium (liquid product stored in open container).
Main body: It adopts double layer structure. The chamber corner adopts circular arc transition, with no cleaning dead corner and anti-corrode.
Sealing door: double motor-driven door, compressed air technology.
304 stainless steel door, safety interlock, double door interlock.
Sterilizer control system:
Siemens PLC: with advanced control function, large storage and fault free operation time up to 50000 hours
Micro-computer touch screen: with Multi-function and three levels password protection.
Pressure transmitter: jacket and chamber sets separately.
Sterilizer pipeline system:
Water ring type vacuum pump
Printer: It achieves real-time output by micro needle printer, could output the “pressure, temperature, time, F0 value” and other parameters and curves conveniently.
Temperature, pressure transmitter setting:
Dual core temperature transmitter, work on system temperature and sterilization recording.
High function biology filter, Teflon filter core.

Specification

Capacity

2000L

2500L

3000L

Chamber Size (W*D*H) mm

1700*1000*1200

2100*1000*1200

2500*1000*1200

Chamber Material

304 stainless steel

Design Pressure

0.245MPa

Working Pressure

0~0.22MPa

Design Temp.

139℃

Working Temp.

105~134℃

Temp. Precise

≤0.5℃

Heat Uniformity

≤±1℃

Steam

0.4~0.8Mpa

70kg

80kg

100kg

Water

0.15~0.3Mpa

400kg

500kg

Compressed Air

0.5-0.8Mpa

Power Consumption

5.5KW

6.5KW

Power Supply

AC380V, 50HZ

External Size (W*D*H) mm

2020*1880*2200

2420*1880*2200

2820*1880*2200

Package Size (W*D*H) mm

2300*2100*2400

2700*2200*2350

3100*2200*2350

Net Weight (kg)

2500

2700

3000

Gross Weight (kg)

2800

3000

3300
